Description

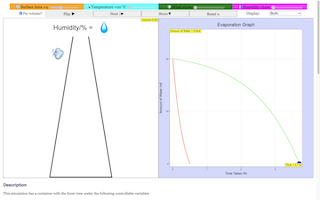

This simulation has a container with the front view under the following controllable variables

Surface Area of the container as shown by the water level decreasing due to evaporation

Temperature of the surroundings that as it increase also increases the rate of evaporation of the water in the container

Presence of Wind, with 3 settings, Low, Medium and High winds conditions. Higher the wind conditions, faster the rate of evaporation of water in the container

Humidity , with 3 settings, Low, Medium and High Humidity, Low humidity imply Higher rate of evaporation, High humidity imply Lower rate of evaporation

Controls

Play/Pause button starts and pause the simulation

Step button forward the simulation by one time step

Store Data button allows different runs of the experiment with different variables values, the graph will show different color trail for comparison like a datalogger setup.

Reset button puts the simulation back to its default state.

Sample Question Type that the Simulation is made to address. Suggested Answer is Beaker B is line Q, Beaker A is line S
